Whenever you deal with a large amount of numbers, graphs are one of the best ways to represent this data in a clear and simple manner. They make it easier to understand trends, compare values and highlight important points. The following is a simple guide to show you the process of creating a graph in Excel, explain the types of charts available and provide tips for customizing your visuals.
How to Create a Graph with Data in Excel
Step 1: Prepare Your Data
Before you can create a graph, you will need to ensure your data is clean and well organised. Excel works best when your data is laid out in a clear table format.
- Arrange data in rows or columns: Put categories (such as months, products, or regions) in one column or row, and put the corresponding values (such as sales, costs, or quantities) in the next column or row.
- For example: Column A contains months (January, February, March) and Column B contains sales numbers (500, 700, 650).
2. Include headers: Give each column or row a descriptive label (e.g., “Month” and “Sales”). Excel uses these headers for the chart legend and axis titles.
3. Keep it clean: Avoid blank rows, unnecessary text, or merged cells in the data range. Excel sometimes misreads messy layouts.
Step 2: Select the Data Range
Once your data is ready:
- Highlight the entire table, including the headers.
- If your table is large, you can click on one cell within the data and Excel will often detect the full range automatically when you insert a chart.
Step 3: Insert a Chart
With the data selected:
- Go to the Insert tab on the Ribbon.

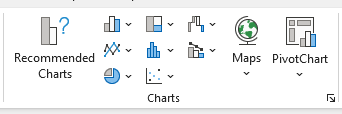

2. In the Charts group, you will see several options like Column, Line, Pie, Bar, Area, and more.
3. Click the chart type you want. Excel will instantly generate a chart using the selected data and place it on the worksheet.
For example:

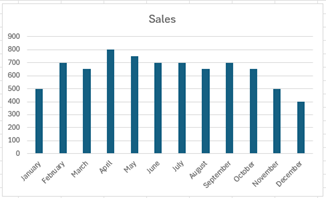

- If you choose a Column Chart, Excel might show “Month” along the horizontal axis and “Sales” along the vertical axis.
- If you choose a Pie Chart, Excel will display slices for each month proportional to sales.
Step 4: Choose the Right Chart Type
There are many different chart types and different chart types will work best for different reasons:
- Column/Bar Chart: Best for comparing values across categories (e.g., sales by region).
- Line Chart: Best for showing trends over time (e.g., monthly growth).
- Pie Chart: Best for showing proportions of a whole (e.g., market share).
- Area Chart: Like line charts but with filled areas, good for cumulative totals.
- Scatter Plot: Best for analysing the relationship between two numerical variables.
- Combo Chart: Lets you combine two chart types (e.g., column for sales, line for profit margin).
Step 5: Customize the Chart
After inserting a chart, Excel gives you many ways to customize it:
1. Chart Title: Click on the default title and type a descriptive name (e.g., “Monthly Sales in 2024”).
2. Chart Elements: When you select the chart, you will see a little cross near the top Right of the chart. Clicking on this gives you access to some of the more commonly used chart formatting options. NB some of these options also have further option denoted by a little “>” symbol next to them
- Axes: Add or edit axis titles. Allows you to type labels like “Month” (X-axis) and “Sales (£)” (Y-axis).
- Legend: Move or hide the legend if needed. For simple charts, you might not need one.
- Data Labels: Display the exact numbers above bars or within slices to make values clear.

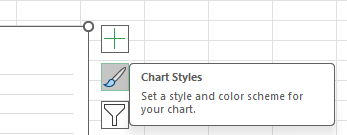

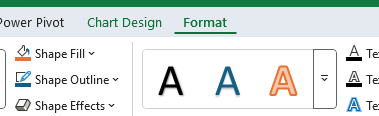

3. Colours and Styles: Use the “Chart Styles” button next to the chart or the Format tab menu to change colours, fonts, or chart layout. NB the chart must be selected for either of these options to appear.
4. For more granular functions to change the chart formatting, you need to bring up the formatting sidebar:
• Right click on the chart or chart element you want to change and choose “Format Chart …” from the menu options.
- Click on the chart or chart element and in the “Format” tab menu section choose “Format Selection”
- Click on the chart or chart element and press CTRL + 1
Step 6: Fine-Tune Layout and Design
For the final touches, there are additional things you can do:
- Resize and Move: Click and drag the chart border to reposition, or drag corners to resize.
- Switch Row/Column: If Excel plotted categories and values incorrectly, use the “Switch Row/Column” button under the Chart Design tab.
- Change Chart Type: If the first choice doesn’t look good, select the chart, then the Chart Design tab. Now choose Change Chart Type
- Add Trendline: For time series data, adding a trendline helps. To do this click on the data you want to add the trendline for (eg the column) and under the right-click menu options select “Add Trendline…”.
Tips for Better Charts
- Keep it simple: Avoid 3D effects or too many colours—they can distort interpretation.
- Highlight key data: Use bold colours for the most important series or category.
- Limit categories: Too many bars or slices make charts unreadable. Group small categories into “Other” if needed.
- Use consistent scales: Don’t manipulate axes in a way that exaggerates or hides differences.
- Test readability: If your audience can understand the chart within 5 seconds, it’s effective.
Conclusion
Creating a graph in Excel can be easy. However it is a bit more than just clicking a button. For best results you will need to prepare your data, choose the right chart and make sure it is easy to understand. With the above help, you can transform numbers into not just a chart but a highly valuable descriptive narrative.
